Universal C-Mount Adapter

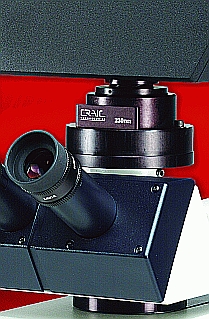

Universal C-mount Adapter™






C-mount for your microscope with 3 axes of movement: now your camera can be parfocal and parcentral with the eyepiece image.




Contact CRAIC Today!














Introduction

The Universal C-mount Adapter™ from CRAIC Technologies was designed for three things:

1. Fit to many microscope models and brands.

2. Adding any camera or spectrophotometer to a microscope photoport.

3. Allowing the camera image to be both parfocal and parcentral with the image from the microscope's eyepieces.

The Universal C-mount Adapter accomplishes all these tasks.  With a proprietary design, it is able to move in the X, Y and Z axes and to allow you easily make your camera image parfocal and parcentral with that of the eyepieces.

With flexible flange design, the Universal C-mount Adapter can be used with many different microscope models and brands.  Just tell us which model microscope that you are using.

Features

Key Features*
  • Add a c-mount camera to many different types of microscopes
  • Make the image from the camera parfocal and parcentral with that of the eyepieces
  • X, Y and Z axis alignment.
  • Option to easily swap filters for improved image quality.
  • Durable construction

Applications

Applications

  • Adding c-mount cameras to microscopes
  • Adding spectrophotometers to microscopes

Support

CRAIC Technologies provides service and support for it's instruments worldwide.  CRAIC Technologies service engineers offer instrument repair, maintenance, training and technical support for all aspects of CRAIC Technologies products.
