• 20/30 PV™ Microspectrometer

    UV-visible-NIR and Raman of microscopic sample areas.

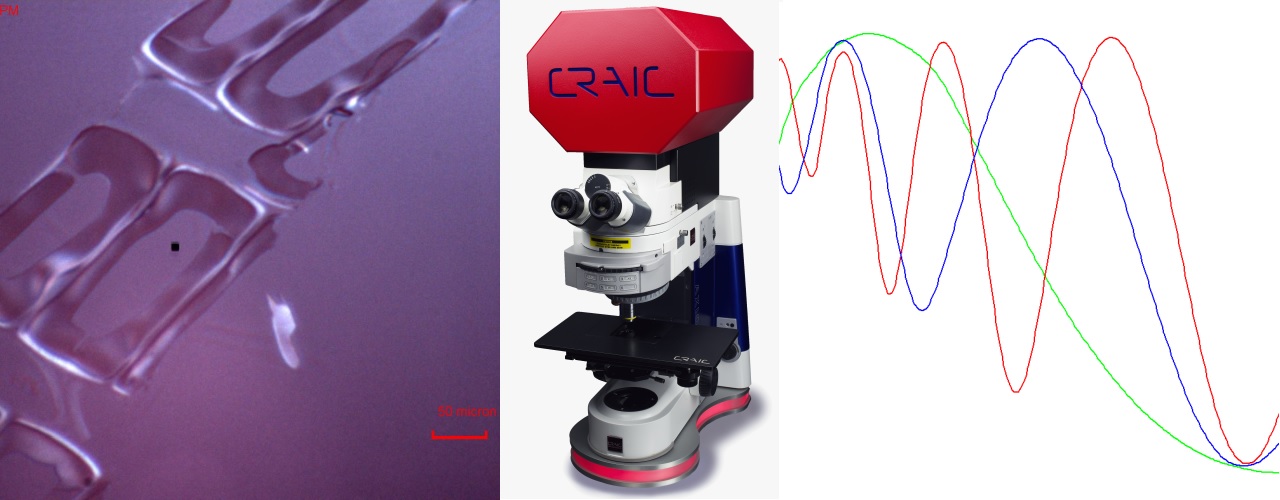

20/30 PV™ Microspectrophotometer

Cutting Edge UV-Visible-NIR Microspectrophotometer

The innovative 20/30 PV™ microspectrophotometer is the latest and most powerful instrument from CRAIC Technologies. Built to meet your requirements, this bespoke instrument incorporates the latest technological advances in optics, spectroscopy and software to deliver the superior performance with unparalleled speed and capabilities. The ease-of-use for which CRAIC instruments are known has even been improved, making this instrument the cutting edge of UV-visible-NIR microspectroscopy.

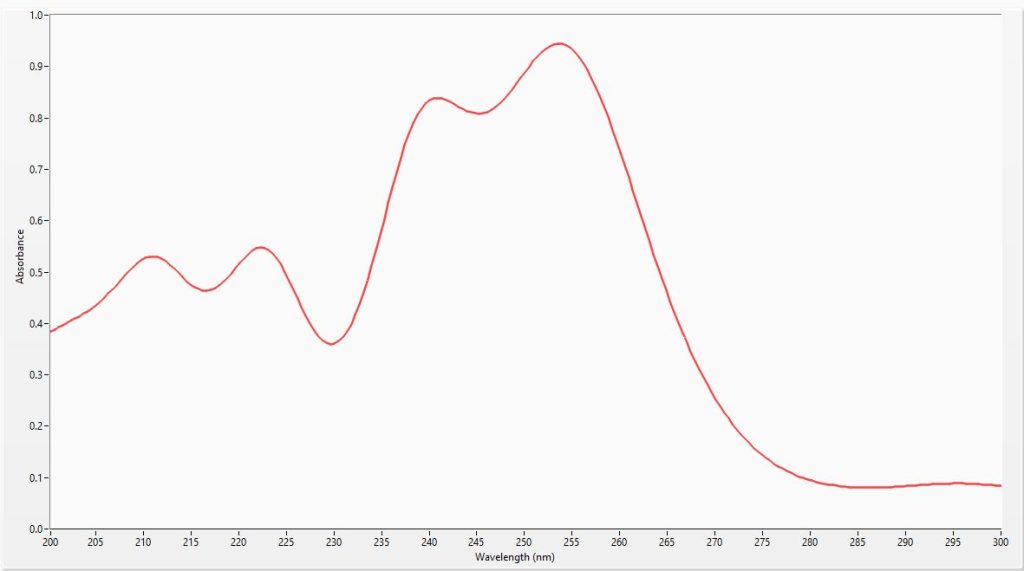

The 20/30 PV™ microspectrophotometer combines the latest technologies to allow the user to measure UV-visible-NIR range transmission, absorbance, reflectance, emission and photoluminescent microspectra™ of sample areas smaller than a micron across. Even the thickness of thin films and color spaces may be determined. And while microspectra™ are being acquired, the sample may be viewed with high-resolution digital imaging in the deep UV, in color or in the near infrared. Ease of use features also add to the power of the 20/30 PV™ system and include everything from improvements in the instruments ergonomics to software to automation.

The 20/30 PV™ microspectrophotometer is simple to use, the measurements are non-destructive and the spectral data is unmatched.

Features

Key Features*

The 20/30 PV™: superior UV-visible-NIR spectra and images of microscopic samples.

  • Spectral Range: 200 to 2500 nm
  • UV-visible-NIR transmission microspectroscopy
  • UV-visible-NIR transmission imaging
  • UV-visible-NIR reflectance microspectroscopy
  • UV-visible-NIR reflectance imaging
  • UV-visible-NIR fluorescence microspectroscopy
  • UV-visible-NIR fluorescence micro-imaging
  • Raman microspectroscopy
  • UV-visible-NIR photoluminescence microspectroscopy
  • UV-visible-NIR photoluminescence imaging
  • Polarization microspectroscopy in the UV, visible and NIR regions
  • Polarization microscale imaging in the UV, visible and NIR regions
  • Thin film thickness measurements
  • Colorimetry of microscopic samples
  • Refractive index measurements with the rIQ™ package
  • Manual or fully automated operation
  • Featuring Lightbladestechnology
  • Integrated TE cooled array detectors available for low noise and long term stability
  • Precision temperature control of samples
  • Calibrated, variable measurement areas even smaller than a micron
  • Superior images both with eyepieces and digital imaging
  • Featured with Lambdafire™ spectroscopy and imaging control and analysis software. Lambdafire™ also includes touchscreen control

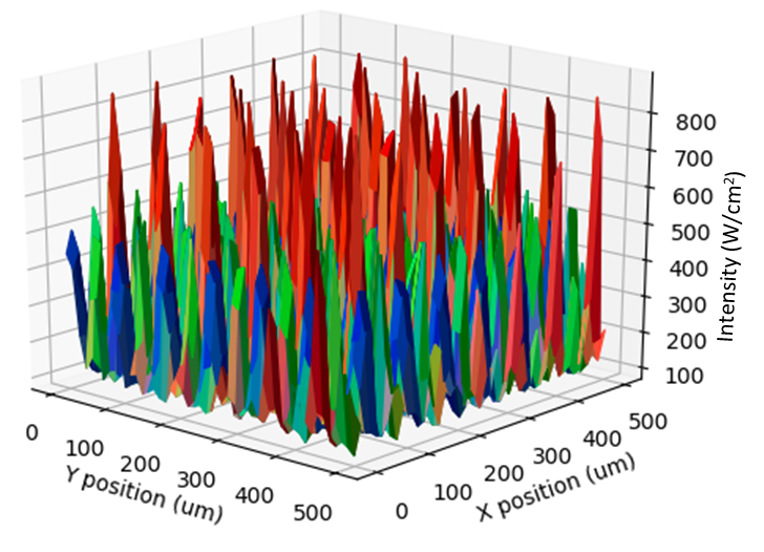

  • Specialized software modules including statistical analysis, spectra mapping, spectral databasing, image analysis and more
  • Easy to use and maintain
  • From the experts in microspectroscopy

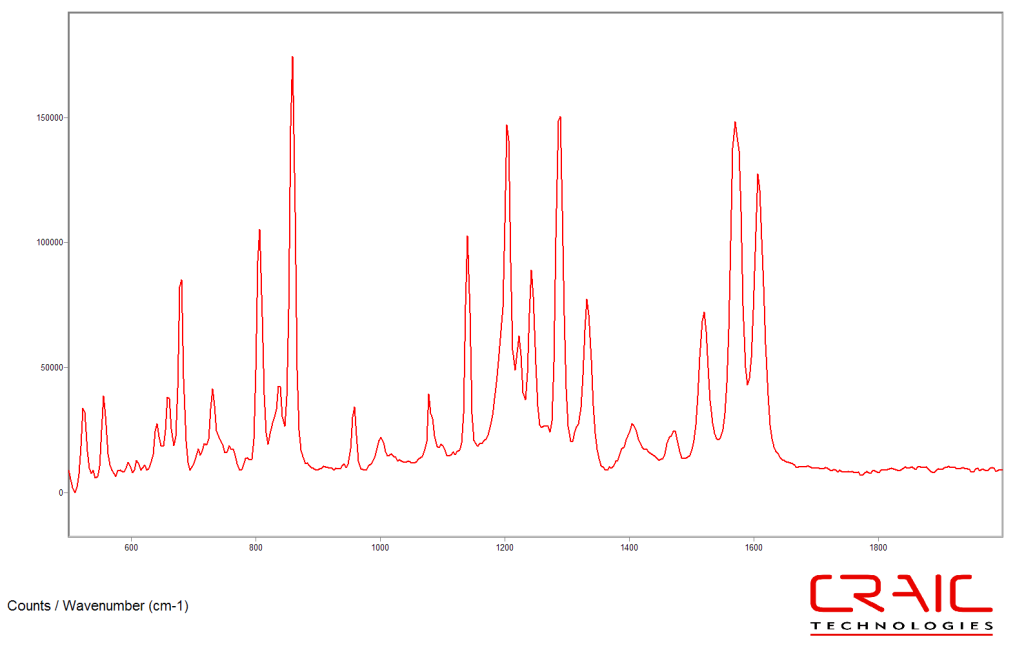

20/30 PV™ with Apollo Raman Microspectrometer



The 20/30 PV™ Microspectrometer can take spectra and images of microscopic samples from the deep ultraviolet to near infrared with one seamless operation. It can acquire microspectra™ and images in absorbance, reflectance, and fluorescence. The microspectrometer is offered with both the DirecVu™ to view samples by eye as well as with a high resolution UV-visible-NIR digital imaging system.

Perfect Vision for Science™





Contact CRAIC Today!

The lit microscope base and the lit octagonal optical head are trademarks of CRAIC Technologies, Inc. CRAIC Technologies, 20/20™, 20/30 PV™ and "Perfect Vision for Science" are all trademarks of CRAIC Technologies, Inc. Instrument features offered depend upon instrument configuration. Features listed here may not be present in some configurations.

*Features and specifications depend upon instrument configuration. Specifications subject to change without notice.

UV-visible-NIR microscopes, UV-visible-NIR microspectrometers and Raman microspectrometers are general purpose laboratory instruments. They have not been cleared or approved by the European IVD Directive, the United States Food and Drug Administration or any other agency for diagnostic, clinical or other medical use.
