Cost Effective Microspectroscopy

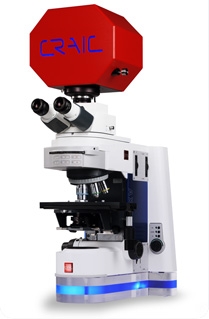

FLEX PRO™ Microspectro-photometer
UV-visible-NIR and Raman analysis of microscopic sample areas.
The FLEX PRO™ from CRAIC Technologies is a powerhouse of versatility and performance, offering a full suite of features in a flexible configuration. Integrating UV-visible-NIR optics, spectrophotometers, digital imaging, and software, all harmonized by our Lightswitch by CRAIC™ optical multiplexer, the FLEX PRO™ ensures unmatched ease-of-use. This sophisticated technology caters to a broad spectrum of applications, from UV-visible-NIR microspectroscopy and high-resolution microscopic imaging to refractive index measurements and beyond.
Affordably priced, the FLEX PRO™ microspectrophotometer leverages proven technologies to measure UV-visible-NIR range transmission, absorbance, reflectance, emission, and fluorescence spectra of microscopic sample areas. While capturing microspectra™, it simultaneously provides high-resolution color digital imaging or eyepiece viewing. Additional features include refractive index measurements of microscopic samples, microcolorimetry, and microspot thin film thickness measurements, making the FLEX PRO™ an all-encompassing and versatile solution for diverse analytical requirements.
Perfect Vision for Science™
Introduction
Features
Key Features*
A cost effective solution for UV-Visible-NIR microspectroscopy and microscopic imaging.
- UV-visible-NIR microspectroscopy
- High Resolution Imaging
- Microspectroscopy
- Transmission
- Reflectance
- Polarization
- Fluorescence
- Raman
- Imaging:
- Transmission
- Reflectance
- Polarization
- Fluorescence
- Raman microspectroscopy
- Thin film thickness measurements
- Colorimetry of microscopic samples.
- Refractive index measurements with the rIQ™ package.
- Featuring Lightblades™ technology
- Scorpii™ Advanced Illumination System
- Calibrated, variable measurement areas smaller than a micron available
- Superior images both with eyepieces and digital imaging
- Specialized software including statistical analysis, spectral databasing, image analysis and more
- Easy to use and maintain
- From the experts in microspectroscopy
UV-vis-NIR Microspectroscopy
Cost effective microspectroscopy
Microspectroscopy that features a spectral range from the UV through the visible and into the near infrared. Simultaneous and direct imaging of both the sampling aperture and the sample makes for fast, accurate measurements. Featuring Scorpii™, SampleSafe™ and Lightblades™ technology, the FLEX PRO™ gives you the ability to measure transmission, reflectance and fluorescence spectra of even sub-micron samples. CRAIC Technologies is also the only recognized source for NIST traceable microspectrometer standards. |  |
Raman Microspectroscopy
FLEX PROible Raman Microspectroscopy
| When fitted with the Apollo™ Raman spectrometer, the FLEX PRO™ is capable of Raman spectroscopic measurements of microscopic samples. Modules include lasers, Raman spectrometers and the interface optics that allow you to collect high quality Raman spectra of your samples. |  |
Fluorescence
High sensitivity microfluorometry & imaging
| The FLEX PRO™ can be configured for fluorescence and luminescence spectra and images of microscopic samples. Featuring Lightblades™ technology and with excitation ranging from the deep UV to the near infrared and the ability to measure the emission in the same range, the FLEX PRO™ is a powerful tool for microfluorometry for materials sciences, biology, geology and more. |  |
Spectral Surface Mapping
Combines hardware and software for automated spectral analysis and 5D mapping of samples with microscopic spatial resolution. 5D maps of the absorbance, transmission, reflectance, fluorescence, emission, time and Raman spectra of samples may be generated. |  |
UV-vis-NIR Microimaging
Superior image quality
| The FLEX PRO™ includes a UV-visible-NIR microscope featuring high resolution color digital imaging. With its sophisticated imaging software, FLEX PRO™ gives you the ability for both real time and image capture of samples by transmission, reflectance, polarization and fluorescence. |  |
Applications
Applications
- Trace Evidence
- Forensic Drug Chemistry
- Questioned Documents
- OLED's
- Flat Panel Color Masks
- Semiconductor Film Thickness
- MEMS devices
- Surface Plasmon Resonance
- PhotonicBandgap Crystals
- Process Impurity Detection

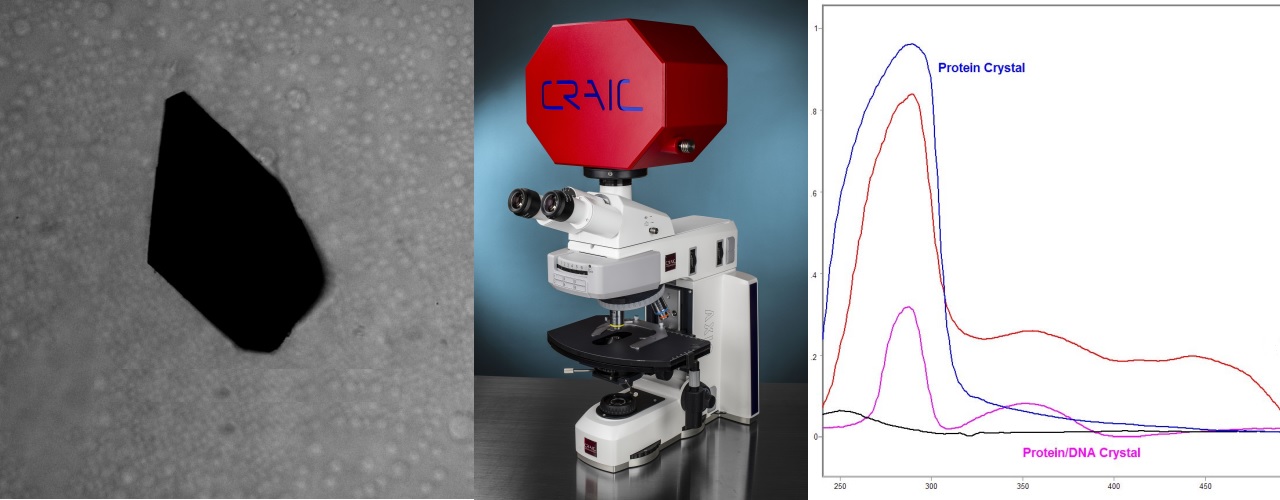

- Protein Crystals
- Combinatorial Chemistry
Support
Support
CRAIC Technologies provides service and support for it's instruments worldwide. CRAIC Technologies service engineers offer instrument repair, maintenance, training and technical support for all aspects of CRAIC Technologies products.
The FLEX PRO™ microspectrophotometer is built to yield superior quality images and spectra for an attractive price.
The FLEX PRO™ Microspectrophotometer can take spectra from the deep ultraviolet to near infrared with one seamless operation. It can acquire microspectra™ and images in absorbance, reflectance, and fluorescence. The microspectrometer is offered with both the DirecVu™ to view samples by eye as well as with a high resolution color digital imaging system.
The lit microscope base and the lit octagonal optical head are trademarks of CRAIC Technologies, Inc. CRAIC Technologies, 2030PV™, FLEX™, 508PV™, Apollo™, GeoImage™, rIQ™, Lambdafire™, Lightblades™ and "Perfect Vision for Science" are all trademarks of CRAIC Technologies, Inc. Instrument features offered depend upon instrument configuration. Features listed here may not be present in some configurations.
*Features and specifications depend upon instrument configuration. Specifications subject to change without notice.
UV-visible-NIR microscopes, UV-visible-NIR microspectrometers and Raman microspectrometers are general purpose laboratory instruments. They have not been cleared or approved by the European IVD Directive, the United States Food and Drug Administration or any other agency for diagnostic, clinical or other medical use.
