UVM-1 ™ NIR Microscope

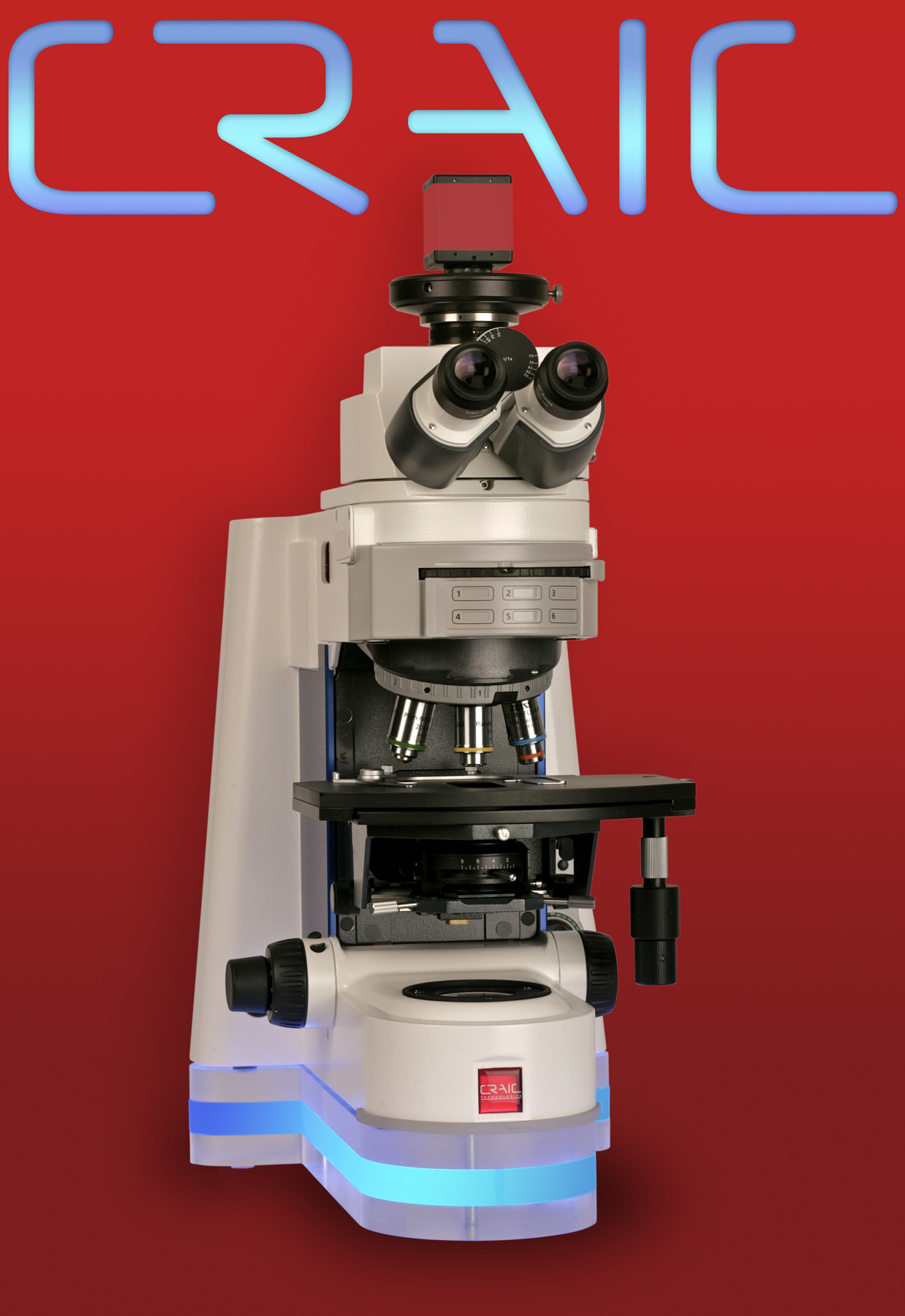

UVM-1 NIR microscope for NIR microscopy





The UVM-1 NIR™ microscope can image microscopic samples in the near infrared as well as the visible region.





Contact CRAIC Today!



Introduction

The UVM-1™ is a NIR microscope that also can image in the visible and UV. This UV-visible-NIR microscope embodies both advanced optics for cutting edge UV, color and NIR imaging and visualization. The system is a flexible design, very easy to use and very durable. It is designed with cutting edge CRAIC optics for the highest image quality and to give years of service.

The UVM-1™ NIR microscope can image in transmission, reflectance, polarization and even in fluorescence from the UV, visible, and NIR regions with high spatial resolution...all with the same microscope and without swapping components.

Features

Key Features*
  • NIR microscopy
  • Visible range microscopy
  • UV microscopy...all with the same instrument and easily switched!
  • Ultraviolet-visible-NIR imaging in one shot. And without changing optics!
  • Transmission, reflectance, fluorescence, and polarization imaging of microscopic samples...all with the same instrument
  • True high resolution digital imaging and direct visualization through eyepieces
  • Easy to use and maintain

More Capabilities

More capabilities...

Applications

Applications
  • Bonded Wafer Inspection
  • Trace Evidence
  • Flat Panel Displays
  • Surface Plasmon Resonance
  • Process Impurity Detection
  • Questioned Documents
  • Photonic Crystals
  • Protein Crystals
  • DNA Analysis
  • Forensic Drug Chemistry
  • Combinatorial Chemistry
  • MEMS devices

Support

CRAIC Technologies provides service and support for it's instruments worldwide.  CRAIC Technologies service engineers offer instrument repair, maintenance, training and technical support for all aspects of CRAIC Technologies products.


The UVM-1™ NIR Microscope can image from the deep ultraviolet to near infrared with one seamless operation. It can acquire images in absorbance, reflectance, and fluorescence. It can be fitted with both the DirecVu™ to view samples by eye as well as with the high resolution digital imaging system.



The lit microscope base and the lit octagonal optical head are trademarks of CRAIC Technologies, Inc. CRAIC Technologies, UVM-1™, UVM-1 NIR™ are all trademarks of CRAIC Technologies, Inc. Instrument features offered depend upon instrument configuration.  Features listed here may not be present in some configurations.

*Features and specifications depend upon instrument configuration.  Specifications subject to change without notice.
