CRAIC FiberPro™ Fiber Mapping

Dyed textile fibers under a microspectrometer







Software to automatically map the spectra of fibers and hairs




Contact CRAIC Today!














Introduction


CRAIC Technologies™ has developed the CRAIC FiberPro™ package to automatically map structures such as hairs, fibers, fiber optics and similar configurations. The package combines hardware and software to enable you to automatically and rapidly map the spectral characteristics of fiber-like structures on the microscopic scale.

CRAIC FiberPro™ is designed to be fully integrated with the CRAIC microspectrophotometer series and acts seamlessly to measure the spectral characteristics of fiber-like structures by absorbance or fluorescence relative to the length of the fiber. CRAIC FiberPro™ is simple to use, very fast and results in spectral maps of the hair or fiber. It allows you to analyze individual spectra as well as map changes down the length of the sample. Colorimetric analysis can also be done when combined with the CRAIC ColorPro™ software.



Perfect Vision for Science™





Contact CRAIC Today!


MINERVA™, CRAIC FiberPro™, the lit microscope base and the lit octagonal optical head are trademarks of CRAIC Technologies, Inc. CRAIC Technologies, 20/20™, 20/20 PV™ and "Perfect Vision for Science" are all trademarks of CRAIC Technologies, Inc. Instrument features offered depend upon instrument configuration.  Features listed here may not be present in some configurations.

*Features and specifications depend upon instrument configuration.  Specifications subject to change without notice.

UV-visible-NIR microscopes, UV-visible-NIR microspectrometers and Raman microspectrometers are general purpose laboratory instruments. They have not been cleared or approved by the European IVD Directive, the United States Food and Drug Administration or any other agency for diagnostic, clinical or other medical use.

ImageUV™ Imaging Software

LED Microdisplay with CRAIC microspectrometer







Sophisticated software for CRAIC imaging system control and image analysis




Contact CRAIC Today!















Introduction

CRAIC Technologies™ has developed the ImageUV™ solution to allow users of its UV-visible-NIR range microscopes and microspectrophotometers to acquire and analyze images in the UV, color and NIR regions with a single, easy-to-use software package.  The solution combines hardware and software to enable you to control from several digital imaging systems with just one interface, each optimized for its spectral region. The software has numerous image analysis features as well as advanced camera control options to yield the very best UV, visible and NIR images from any CRAIC Technologies microscope or microspectrophotometer.

ImageUV™ is designed to be fully integrated with CRAIC Technologies PV microspectrophotometer and UVM microscope series and acts seamlessly to acquire images with CRAIC Technologies UV, visible and NIR imaging systems. It can be used for everything from contamination analysis to inspection of interior circuitry of bonded wafer devices. ImageUV™ is simple to use, very fast and results in very detailed images. It allows you to analyze individual wavelengths or broad regions.  The software also offers a number of sophisticated image analysis algorithms to enhance your work.

  • ImageUV-64™ now available for 64-bit processors!
  • ImageUV™ for 32-bit processors also available.
  • Runs under Windows 8®, Windows 7® and Windows XP®
  • Multiple digital camera control and image analysis in one easy-to-use package
  • Advanced image analysis features
  • Easy to use and maintain
  • From the experts in microspectroscopy




Perfect Vision for Science™





Contact CRAIC Today!


MINERVA™, CRAIC MINERVA™, MINERVA II™, CRAIC MINERVA II™, the lit microscope base and the lit octagonal optical head are trademarks of CRAIC Technologies, Inc. CRAIC Technologies, 20/20™, 20/20 PV™ and "Perfect Vision for Science" are all trademarks of CRAIC Technologies, Inc. Instrument features offered depend upon instrument configuration.  Features listed here may not be present in some configurations.

*Features and specifications depend upon instrument configuration.  Specifications subject to change without notice.

UV-visible-NIR microscopes, UV-visible-NIR microspectrometers and Raman microspectrometers are general purpose laboratory instruments. They have not been cleared or approved by the European IVD Directive, the United States Food and Drug Administration or any other agency for diagnostic, clinical or other medical use.

Quartz Slides & Quartz Coverslips from CRAIC Technologies™

CRAIC Technologies quartz slides & quartz coverslips



quartz slides quartz coverslips




CRAIC Technologies quartz slides for microspectrophotometer and microspectrometer













CRAIC Technologies quartz slides, quartz wellslides and quartz coverslips are spectral grade and manufactured to the highest levels of quality.

Quartz slides and quartz coverslips are commonly used in UV-visible microspectroscopy and microscopy.  This is because common glass slides and coverslips absorb UV light resulting in very little transmission below 340 nm.  Quartz, on the other hand, transmits UV light with much greater efficiencies.

However, all quartz is not equal.  As with anything, there are various grades and specifications.  The most common quartz slides and coverslips use lower grade materials as they are not designed for deep UV microspectroscopy or microscopy.  However, a spectroscopist needs all the UV light they can get... especially in the deep ultraviolet region where many materials exhibit some very unique features.

To the left is the transmittance spectra of CRAIC spectral grade quartz and quartz commonly used in microscope slides and coverslips.  The purple line represents the type of quartz that is most commonly used to manufacture quartz slides and quartz coverslips.  As is obvious, there is a dramatic drop in UV transmission of this material below 265 nm.  This is one of the reasons so many scientists have difficulty with UV microspectroscopy between 200 to 265 nm when not using CRAIC quartz slides. The red line represents the optical grade quartz used by CRAIC Technologies in their quartz slides and quartz coverslips.  The amount of UV transmitted is over 85% down to 200 nm.

*Features and specifications depend upon instrument configuration.  Specifications subject to change without notice.

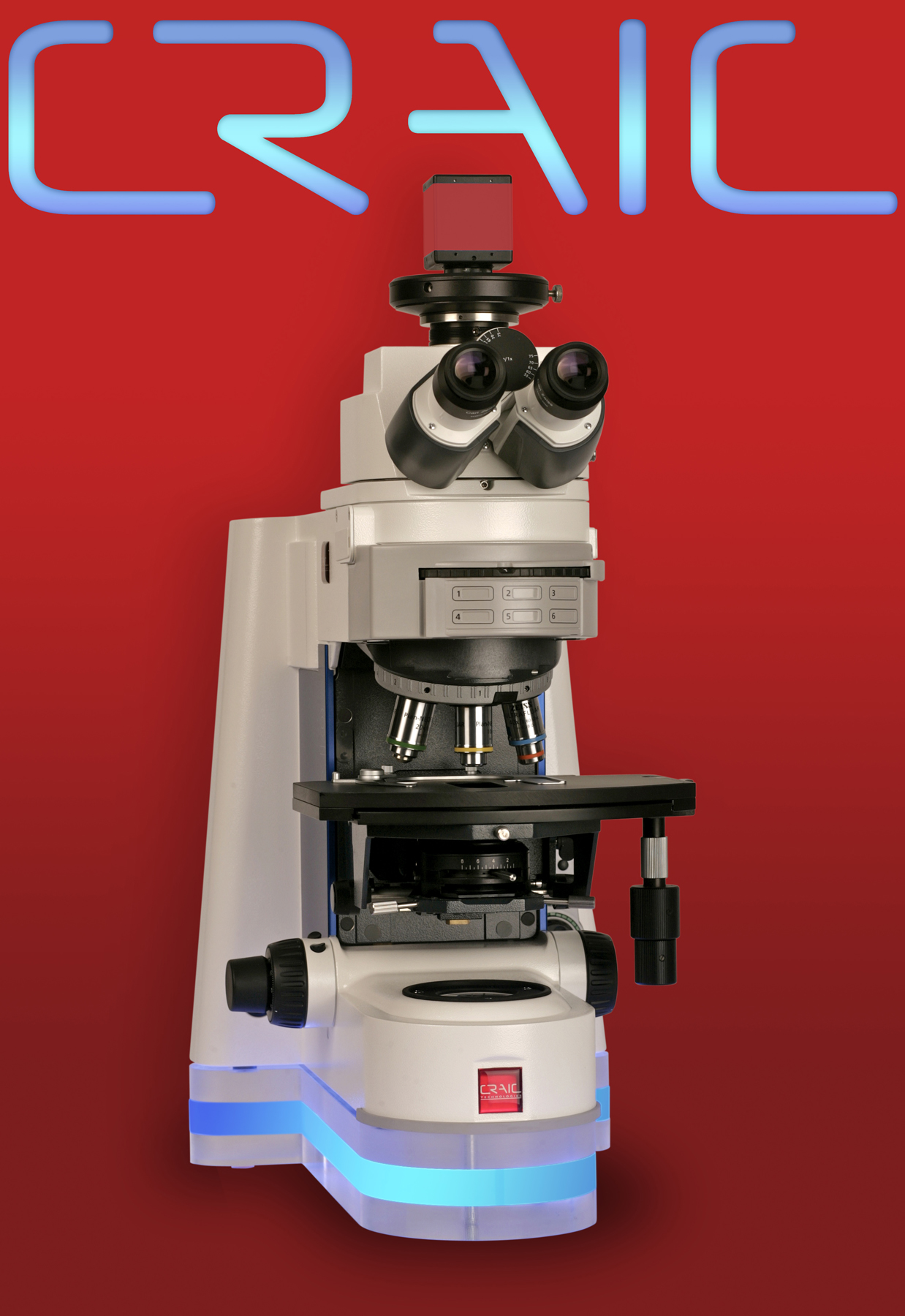

UVM-1 Bio™ UV-Visible-NIR Microscope

CRAIC Technologies UVM-1 Bio™ microscope





The UVM-1 Bio™ is designed for high-resolution microscopy of biological samples in the deep UV, visible, and NIR regions.





Contact CRAIC Today!

Introduction

The UVM-1 Bio™ UV-visible-NIR microscope is designed for biological analysis. With a spectral range that covers the ultraviolet, visible and NIR regions, the UVM-1 Bio™ microscope is commonly used to image biological samples that are normally transparent. This is made possible by the advanced optics it contains for cutting edge imaging and visualization of biological samples with high spatial resolution.The system is very easy to use, very durable and performs all functions seamlessly and flawlessly without needing to swap components.

Additionally, UV-visible-NIR reflectance is an optional imaging package.

  • Deep UV microscopy
  • Visible range microscopy
  • NIR microscopy
  • Raman microspectroscopy now offered
  • Transmission, reflectance, fluorescence, and polarization imaging of microscopic samples
  • True high resolution digital imaging and direct visualization through eyepieces
  • Easy to use and maintain

The UVM-1 Bio™ UV Microscope can image from the deep ultraviolet to near infrared with one seamless operation. It can acquire images in absorbance and fluorescence. It can be fitted with both the DirecVu™ to view samples by eye as well as with the high resolution digital imaging system.

The lit microscope base and the lit octagonal optical head are trademarks of CRAIC Technologies, Inc. CRAIC Technologies, UVM-1™, UVM-1 Bio™ are all trademarks of CRAIC Technologies, Inc. Instrument features offered depend upon instrument configuration.  Features listed here may not be present in some configurations.

*Features and specifications depend upon instrument configuration.  Specifications subject to change without notice.

UV-visible-NIR microscopes, UV-visible-NIR microspectrometers and Raman microspectrometers are general purpose laboratory instruments. They have not been cleared or approved by the European IVD Directive, the United States Food and Drug Administration or any other agency for diagnostic, clinical or other medical use.

Discover how to improve microspectrometer throughput and save money by automating your microscope

 Automated UV-Visible-NIR Microspectrophotometer







Full automation of your CRAIC microspectrometer and microscope.




Contact CRAIC Today!











Introduction


CRAIC Technologies™ automation solutions are designed to improve microspectrometer and microscope throughput and save money by automating labor intensive and repetitive steps. All features are integrated with our instrument control software and hardware to seamlessly expand the capabilities of your instrument with such features as repeatable, multiple location measurements, integration and analysis of full data sets per sample or per set of sample.

CRAIC automation solutions reduce labor, save money and add capabilities to your microspectrometer. They are designed to be rugged, fast and highly flexible. Most importantly, they are easily reprogrammed to meet your changing requirements and to protect your investment far into the future.

The 20/30 PV™ Microspectrometer can take spectra and images of microscopic samples from the deep ultraviolet to near infrared with one seamless operation. It can acquire microspectra™ and images in absorbance, reflectance, and fluorescence. The microspectrometer is offered with both the DirecVu™ to view samples by eye as well as with a high resolution UV-visible-NIR digital imaging system.
