Building Better Photodetectors: Perovskite Metasurfaces and Polarization Sensitivity

The next generation of photodetectors must be able to deliver more than just intensity and spectral data. They need to be capable of detecting polarization. Adding polarization sensitivity to photodetectors requires materials and structures that can interact with light in new ways. Perovskite metasurfaces offer such a capability, combining strong light absorption with nanoscale patterning to unlock polarization-sensitive detection.

Metasurfaces and Perovskite Metasurfaces

Metasurfaces are ultra-thin, nanostructured layers composed of repeating subwavelength features, often referred to as meta-atoms, that enable precise control of how light behaves at a surface. Through adjusting the geometry, orientation, and spacing of these features, engineers can tailor how light is transmitted, reflected, or polarized. This structural control allows metasurfaces to perform complex optical functions such as beam steering, focusing, filtering, and polarization conversion within a compact, planar format. Because they replace conventional optical components with engineered nanostructures, metasurfaces simplify optical designs and support miniaturized, highly integrated photonic systems.

Why Perovskite Metasurfaces Matter for Photodetection

When metasurfaces are fabricated using perovskite materials, they become perovskite metasurfaces. Halide perovskites possess a high refractive index, strong light absorption, and tunable bandgaps, while also being solution-processable, which makes them ideal for nanoscale patterning. Perovskite metasurfaces enable optical responses that are highly tunable, efficient, and compact. They help engineers to:

• Trap and manipulate light to enhance the responsivity of a photodetector.
• Reduce optical system complexity through embedding filtering functions directly into photodetector materials.
• Design photodetectors that respond selectively to light’s polarization without relying on external polarizers.

By combining the intrinsic light absorption of perovskites with the nanoscale control of metasurfaces, this approach directly addresses the need for compact, polarization-sensitive photodetectors. Perovskite metasurfaces embed polarization control within the material itself, forming a direct pathway toward photodetectors capable of extracting more detailed information from light.

Engineering Polarization Sensitivity in Photodetectors

Polarization carries critical information about light that traditional technologies often miss. Devices such as silicon photodiodes and imaging sensors based on CCD or CMOS technology typically only measure intensity, and with the help of filters, wavelength. To capture polarization directly, photodetectors must be structured so they interact differently with light depending on its orientation. Perovskite metasurfaces accomplish this through combining the strong light absorption of perovskite materials with nanoscale patterns that tailor absorption and resonance to polarization. Such control is typically implemented through three main design strategies:

• Linear polarization control: elongated or asymmetric nanostructures introduce anisotropic resonances that selectively enhance responses to specific polarization directions.
• Circular polarization control: chiral arrangements twist the local electromagnetic field, producing handedness-selective responses that distinguish left- and right-circular polarization.
• Multi-state detection: hybrid designs integrate both anisotropic and chiral elements, allowing a single pixel to distinguish multiple polarization states simultaneously.

In addition to the effects of metasurface geometry, the properties of perovskite materials provide further tunability. Crystal orientation and composition influence how light couples into the patterned structures, allowing fine adjustments to be made to polarization sensitivity. With polarization control embedded directly in the detector material, perovskite metasurfaces remove the need for external polarizers or filters and support the development of compact devices capable of producing richer, polarization-resolved datasets.

Connecting Microscale Features to Optical Function

Engineers need tools that map how light interacts with structure at the nanoscale to build polarization-sensitive photodetectors that function as designed. Microspectroscopy delivers high-resolution data on the optical response of perovskite metasurfaces, correlating nanoscale structure with device-level performance. These insights can be collected through several techniques:

UV-Vis-NIR Microspectroscopy

UV-Vis-NIR microspectroscopy reveals how perovskite metasurfaces interact with light across ultraviolet, visible, and near-infrared wavelengths. It provides high-resolution spectral maps that show:

• How resonances shift with structural changes in the patterned perovskite layer.
• Whether polarization selectivity aligns with metasurface geometry.
• Variations in optical uniformity across the perovskite metasurface.

Crucially, UV-Vis-NIR microspectroscopy can confirm if the local optical properties of a perovskite metasurface match simulations, enabling rapid troubleshooting during development. In doing so, it serves as the validation that enables the move from concept to functional photodetector.

Photoluminescence and Emission Mapping

Photoluminescence (PL) microspectroscopy examines how perovskite metasurfaces emit light when excited, generating spatial maps of emission intensity and polarization. These maps help to:

• Identify regions where nanostructures enhance or redirect emission.
• Reveal how structural variations influence recombination dynamics
• Explore polarization-resolved emission, which serves as a key proxy for polarization-sensitive absorption.

Comparing emission maps with the physical features of the perovskite metasurface gives engineers the insight needed to refine material processing and nanostructure design for better photodetector performance.

Raman Microspectroscopy

Raman microspectroscopy probes the crystallinity, composition, and strain of perovskite metasurfaces, all of which affect polarization-sensitive performance:

• Crystal orientation: defines anisotropy and sets the polarization response.
• Strain from patterning or processing: alters band structure and shifts resonances.
• Compositional variation: disrupts uniformity and reduces polarization contrast.

Mapping these properties ensures that perovskite metasurfaces maintain the structural alignment required for reliable polarization performance.

Thin-Film Thickness Mapping

In layered optoelectronic devices such as perovskite metasurface photodetectors, even nanometer-scale variations in film thickness can shift resonances, alter interference effects, and cause performance drift. Microspectroscopy-based thin-film thickness mapping delivers the resolution needed to track such variations and ensure:

• Resonant structures remain within design tolerance.
• Optical paths and interference effects match modeled behavior.
• Uniformity is preserved across the metasurface array.

This level of precision is especially important for devices that rely on interference-based polarization control, where small deviations in thickness can directly reduce polarization sensitivity.

Establishing the Next-Generation of Photodetectors

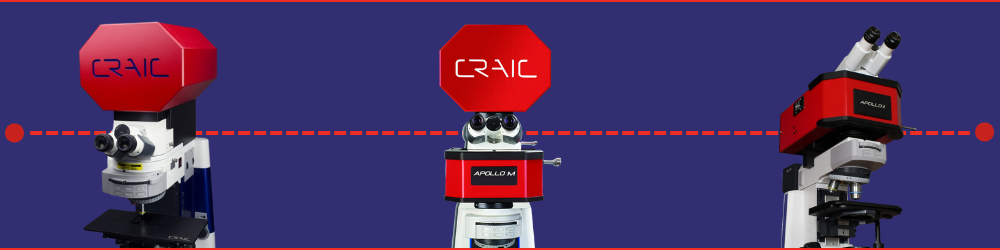

Perovskite metasurfaces promise compact, efficient, and polarization-sensitive photodetectors, but turning this capability into practical devices requires precise optical characterization that connects nanoscale structure to device performance. The microspectroscopy tools from CRAIC Technologies deliver high-resolution optical and structural data, helping researchers optimize materials and designs for better photodetectors. We have a full suite of tools designed for UV-Vis-NIR, photoluminescence, Raman, and thickness mapping, enabling the development of compact and polarization-sensitive devices. Reach out to our specialists today to find out more about how our microspectroscopy solutions can support your research and accelerate the development of high-performance, polarization-sensitive photodetectors.

References

1. Gu Z, Li P, Ren Z, et al. Multifunctional Perovskite Photodetectors: From Molecular-Scale Crystal Structure Design to Micro-Nano-scale Morphology manipulation. Nano-Micro Letters. 2023;15(1):187. doi:10.1007/s40820-023-01161-y.
2. Chaowei C, Dong-Xiang Q, Jie H, et al. Multiple-polarization-sensitive photodetector based on a perovskite metasurface. Optics Letters. 2022;47(3). doi:10.1364/ol.441505.
