Scorpii™ Advanced UV-Visible-NIR Illumination System
UV-Visible-NIR range illumination featuring SampleSafe™ technology
Scorpii™ Advanced Illumination System is a broadband lighting package designed specifically for microspectroscopy.
Introduction
The Scorpii™ system, designed exclusively for use with CRAIC microspectrophotometers, is a broadband lighting package that offers a spectral range from the deep ultraviolet through the visible range and far into the near infrared region. Scorpii™ also features enhanced source stability for improved signal-to-noise ratios in spectra, dramatically longer lamp life and CRAIC Technologies sophisticated SampleSafe™ technology. SampleSafe™ was conceived as a way to protect your samples from such effects as photobleaching and other photochemical issues. Scorpii™ is fully integrated with CRAIC Technologies Lambdafire microspectrometer control and analysis software.
Scorpii™ is now offered with CRAIC Technologies most advanced UV-vis-NIR microspectrometers and microscopes. As such, Scorpii™ is the heart of the next generation PRO series of microspectrophotometers.
Advantages
Scorpii™ Advanced Illumination System offers the following features
- Designed for microspectroscopy
- Deep UV to NIR spectral range for both transmission and reflectance illumination
- SampleSafe™ automated sample protection technology
- Dramatically longer life light sources
- Enhanced stability for improved spectral signal to noise
- Controlled by CRAIC Technologies Lambdafire™ spectral analysis software
Spectral Results

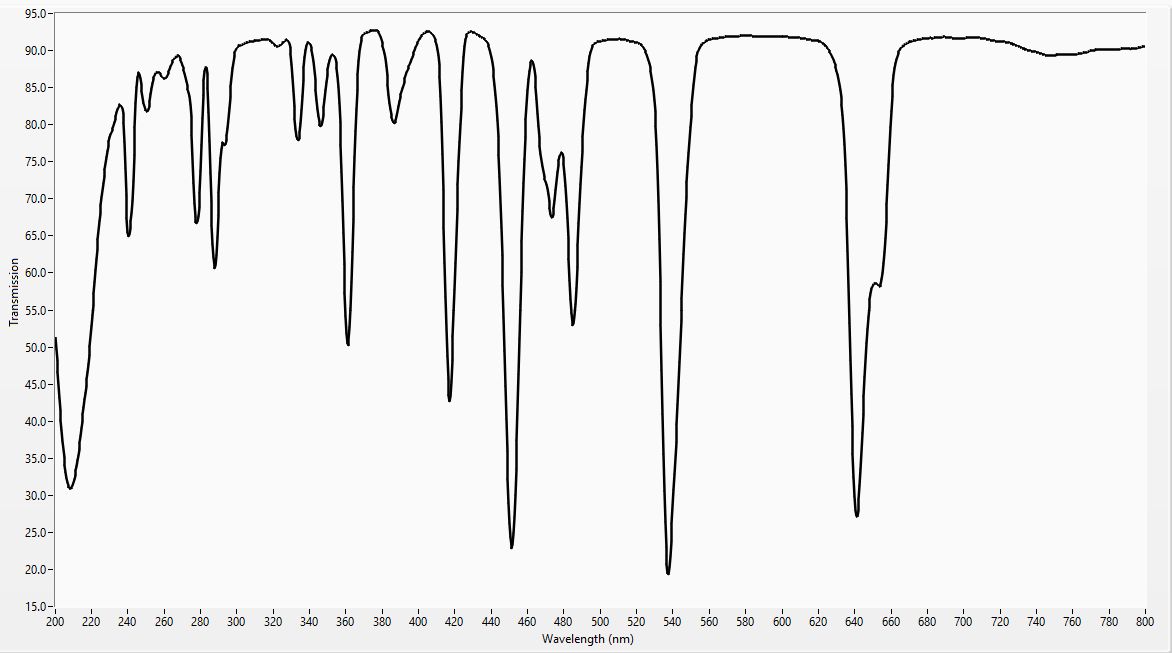

200 to 800 nm spectrum of holmium oxide solution taken with Scorpii™ Advanced Illumination System fitted on a 2030PV PRO™ microspectrometer

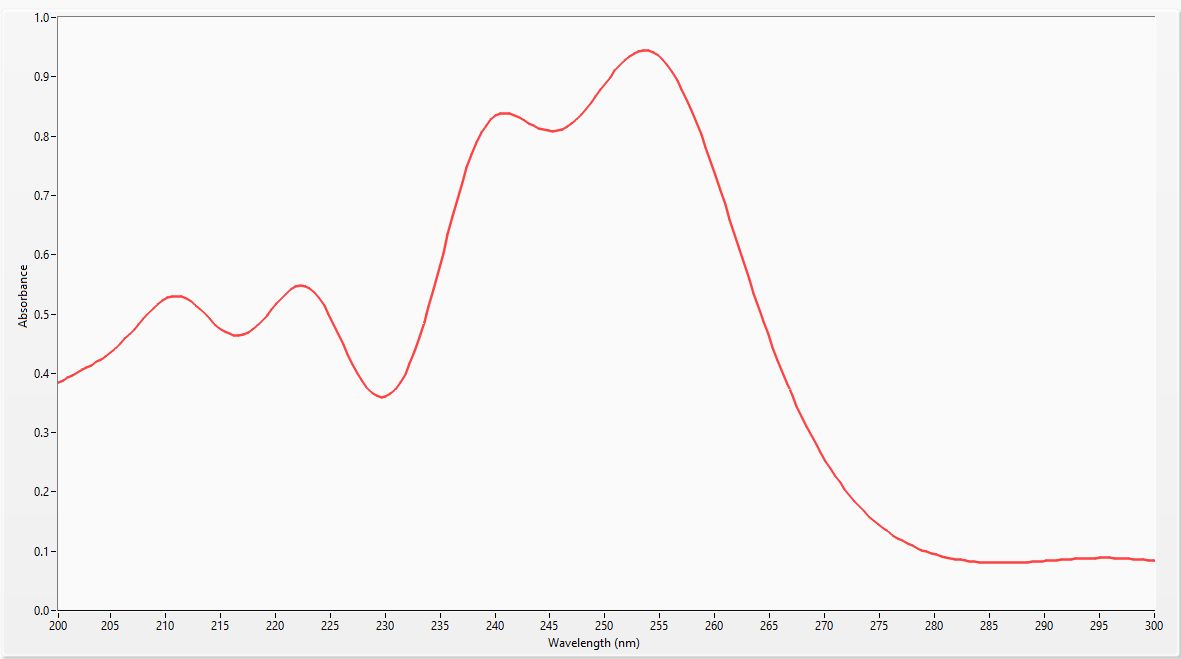

200 to 300 nm spectrum of RMRE solution taken with Scorpii™ Advanced Illumination System fitted on a 2030PV PRO™ microspectrometer
Improved Spectra
Applications
- Absorbance/Transmission microspectroscopy
- Reflectance microspectroscopy
- Polarization anisotropy
- Polarization microspectroscopy
- Microcolorimetry
- Film thickness measurements
Support
Support
CRAIC Technologies provides service and support for it's instruments worldwide. CRAIC Technologies service engineers offer instrument repair, maintenance, training and technical support for all aspects of CRAIC Technologies products.
