Tools for Microscale metasurface characterization: what researchers need to know

Metasurfaces function through carefully patterned nanostructures, each smaller than the wavelength of light. These engineered features are designed to manipulate light in precise ways, influencing properties such as phase, polarization, and spectral response. Unlike traditional optical components, metasurfaces provide this level of control in a compact format that can conform to varied shapes and structures.

Because of their precision and versatility, metasurfaces are being developed for a wide range of applications, including imaging, sensing, filtering, and display technologies. As designs become more advanced and performance requirements increase, it is essential to comprehend how these structures interact with light at the microscale.

To support this understanding, microscale metasurface characterization focuses on analyzing the optical behaviour of the structures themselves. Detecting subtle variations in performance, often across individual or closely spaced features, requires high spatial resolution. Specialized tools provide the level of precision needed by capturing fine structural detail alongside localized optical effects, enabling researchers to determine how fabrication results align with intended design.

Tools for Microscale Metasurface Characterization

Microspectrophotometers

Microspectrophotometers are precision instruments that measure how light is transmitted, reflected, or absorbed by small regions of a sample.

How They Are Used

Researchers rely on microspectrophotometers to identify resonant features, detect optical losses, and analyze material-specific responses across narrow spectral bands. The ability to isolate and evaluate individual areas within a metasurface enables the detailed investigation of performance at the scale where variation matters most.

Advantages

• Wide spectral range covering UV, visible, and NIR
• High spatial resolution suitable for individual feature analysis
• Non-contact, non-destructive measurements

What Researchers Need to Know

• Calibrate the system to match the spectral range of interest
• Adjust spot size based on feature dimensions and array density
• Combine with polarization modules for extended analysis

UV-Visible-NIR Microspectroscopy Systems

This class of instrumentation extends spectral coverage into the ultraviolet and near-infrared, supporting the analysis of metasurfaces that function across multiple wavelength bands.

How They Are Used

Engineers and researchers use these systems to examine metasurfaces operating across ultraviolet, visible, and near-infrared wavelengths in a single workflow. The extended spectral coverage allows for the detailed evaluation of broadband behaviour, thin-film interference effects, and multi-layer performance.

Advantages

• Broad spectral coverage from approximately 200 to 2500 nanometres
• Compatible with a variety of detector configurations
• Effective for comparing measured results to multi-band simulations

What Researchers Need to Know

• Select appropriate detector types for the spectral region under study
• Verify system configuration for balance between resolution and throughput
• Suitable for evaluating optical components under real-world conditions

Microscale Spectral Mapping Systems

Microscale spectral mapping systems translate light–matter interactions into spatially resolved data, capturing how individual features across a metasurface influence spectral behavior. Each scan uncovers localized shifts in performance, revealing where fabrication and function truly align.

How They Are Used

Spectral mapping allows researchers to dissect metasurface behavior with micron scale spatial resolution. Every scan captures how light is absorbed, reflected, or emitted at precise points, making it possible to trace optical shifts back to subtle variations in structure. This approach is key to evaluating whether individual nano-features are functioning as designed, particularly in metasurfaces that rely on tightly controlled resonances or polarization effects.

Advantages

• Captures spatially resolved optical behavior at the feature level of metasurfaces
• Detects nanoscale spectral shifts and localized fabrication defects with precision
• Enables the detailed analysis of polarization-dependent or resonance-based designs

What Researchers Need to Know

• Use resolution and sampling steps that match the scale of the metasurface structures
• Ensure spectral sensitivity aligns with the operational wavelength of the device
• Calibrate systems carefully to maintain measurement integrity across scans

Polarization Analysis Tools

Instruments designed for polarization analysis help determine how metasurfaces influence the polarization state of light. They are essential for evaluating designs that rely on anisotropic or birefringent effects.

How They Are Used

With polarization analysis, it becomes possible to confirm whether a metasurface accurately modifies the polarization state of incoming light. Capturing reliable polarization data is vital for characterizing devices such as polarization beam splitters, waveplates, or chiral structures, where polarization control defines performance.

Advantages

• Measures linear and circular polarization behaviour
• Supports generation of Stokes parameters or Mueller matrices
• Enables full vector field analysis of light behaviour

What Researchers Need to Know

• Maintain consistent and well-controlled input polarization
• Ensure alignment and calibration are accurate for reliable readings
• Often used in combination with spectral tools for a comprehensive view

Circular Dichroism Microspectroscopy (CD-MSP)

Circular Dichroism Microspectroscopy (CD-MSP) is an advanced analytical tool developed exclusively by CRAIC Technologies. It combines the sensitivity of circular dichroism (CD) spectroscopy with the spatial precision of microspectroscopy to characterize chiral optical properties at the micron scale.

How It Is Used

Researchers apply CD-MSP by directing circularly polarized light onto specific regions of a metasurface and measuring the differential absorption at each point. Through scanning across the surface, the system generates spatially resolved maps that highlight variations in chiral response. These maps are then compared against design models to assess whether the metasurface is performing as intended, identify fabrication inconsistencies, and evaluate the effectiveness of polarization-specific functionality.

Advantages

• Maps chiral optical response with micron-level precision to validate metasurface functionality
• Identifies nanoscale asymmetries and fabrication errors that impact polarization performance
• Supports the non-destructive characterization of metasurfaces designed for circular polarization effects

What Researchers Need to Know

• Calibrate polarization inputs carefully to ensure the accurate assessment of chiral surface features
• Use detectors and optics configured for the specific spectral range of the metasurface design
• Ideal for characterizing metasurfaces that encode spin-selective or polarization-specific responses

Microcolorimeters

Microcolorimeters measure colour and luminance from small sample regions and are especially valuable for metasurfaces producing visible structural colour.

How They Are Used

Microcolorimeters are applied to capture precise colour output from structured surfaces that rely on nanoscale interference rather than pigment. Quantifying visual characteristics such as chromaticity and luminance allows for the rapid comparison of design variants or production quality in colour-sensitive applications.

Advantages

• Micron-level spatial resolution for precise measurement
• Fast, non-destructive assessments
• Standardized outputs including chromaticity coordinates

What Researchers Need to Know

• Perfect for applications where visual appearance is a key performance factor
• Pair with spectral tools when both visual and wavelength-specific performance are important
• Excellent for both R&D and production-line inspection of colour-based devices

Advancing Metasurface Development with Microscale Insight

Successful microscale metasurface development depends on the ability to measure performance at the level of individual features. Specialized characterization systems allow researchers to observe how light interacts with nanostructured surfaces and confirm whether the device works as expected.

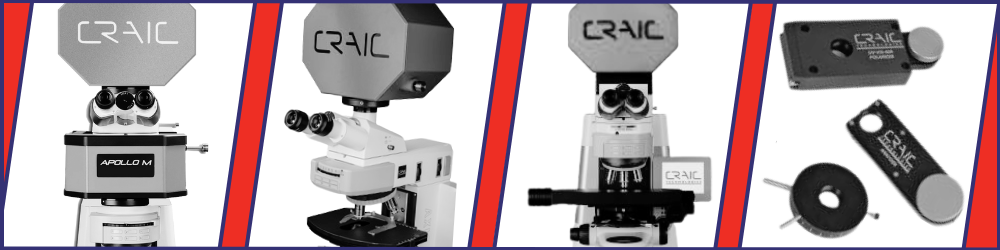

A wide range of CRAIC Technologies systems are available to support the accurate analysis of the optical properties that matter most in metasurface research and development. Further details on available instrumentation can be located on our website, where tools are matched to the precision needs of advanced optical characterization.
